1 KW, 144 MHz Intelligent Power Amplifier

Product Name

1 KW, 144 MHz Intelligent Power Amplifier P/N : LS-ASS-009

General Description

This linear power amplifier has been designed to cover the 144MHz HAM radio band offering OEMs a single, unsurpassed solution for high power amplifier designs. The amplifier is based on the latest generation of Freescale MRFE6VP61K25, high ruggedness N-Channel LDMOS device.
A 8bit/64MHz microcontroller, acquire all working voltages, currents, and temperatures acting bias control, protection and monitoring function. All the working parameter are available through serial port supporting various kind of protocols.

Technical Specification Summary



Frequency Range 140 ÷ 148MHz Working Class AB
Output Power (CW) @1dBcp 1000W ± 0,3dB Supply Voltage 48V ± 2V
Power Gain @1dBcp > 25dB Supply Current (max) <30 Amp.
Input Return Loss > 15dB Temperature Range <-20 to +45°C
Efficiency @1dBcp > 75% (80% typ) Output VSWR (no damage) << 3:1
OIP3 > 70 dBm

Key Features

• Microcontroller based intelligent bias for temperature compensation
• Power input detection for fast over-driver input protection
• Self test function at power start-up
• Over-temperature, Over-current, Over-voltage protection
• PTT input to set zero power consumption in RX mode
• Power-off function by inhibition control (only power section)
• Remote controlling and monitoring via multi-protocol UART/I2C/SPI serial interface
• Soft-start to minimize DC load transient

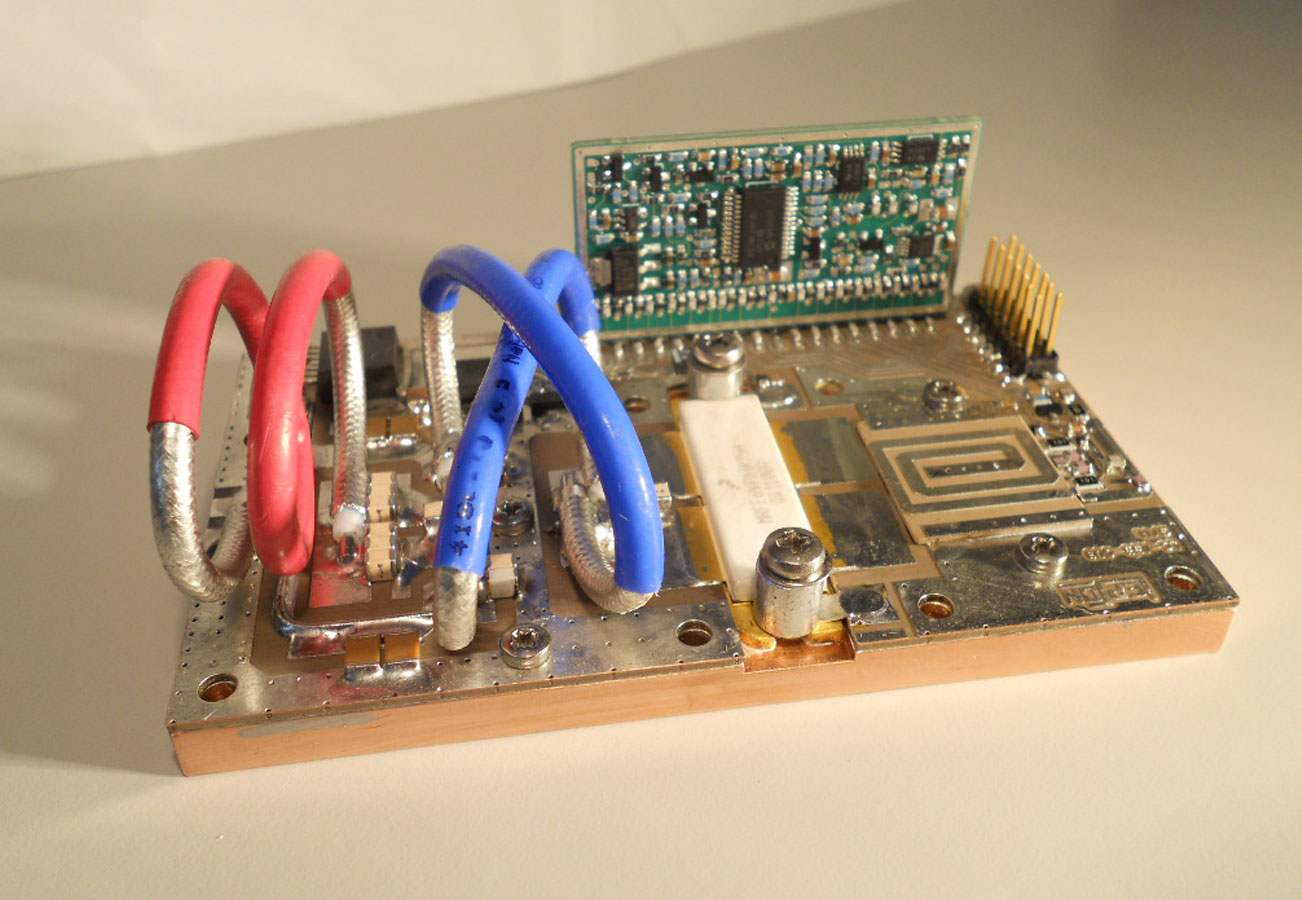

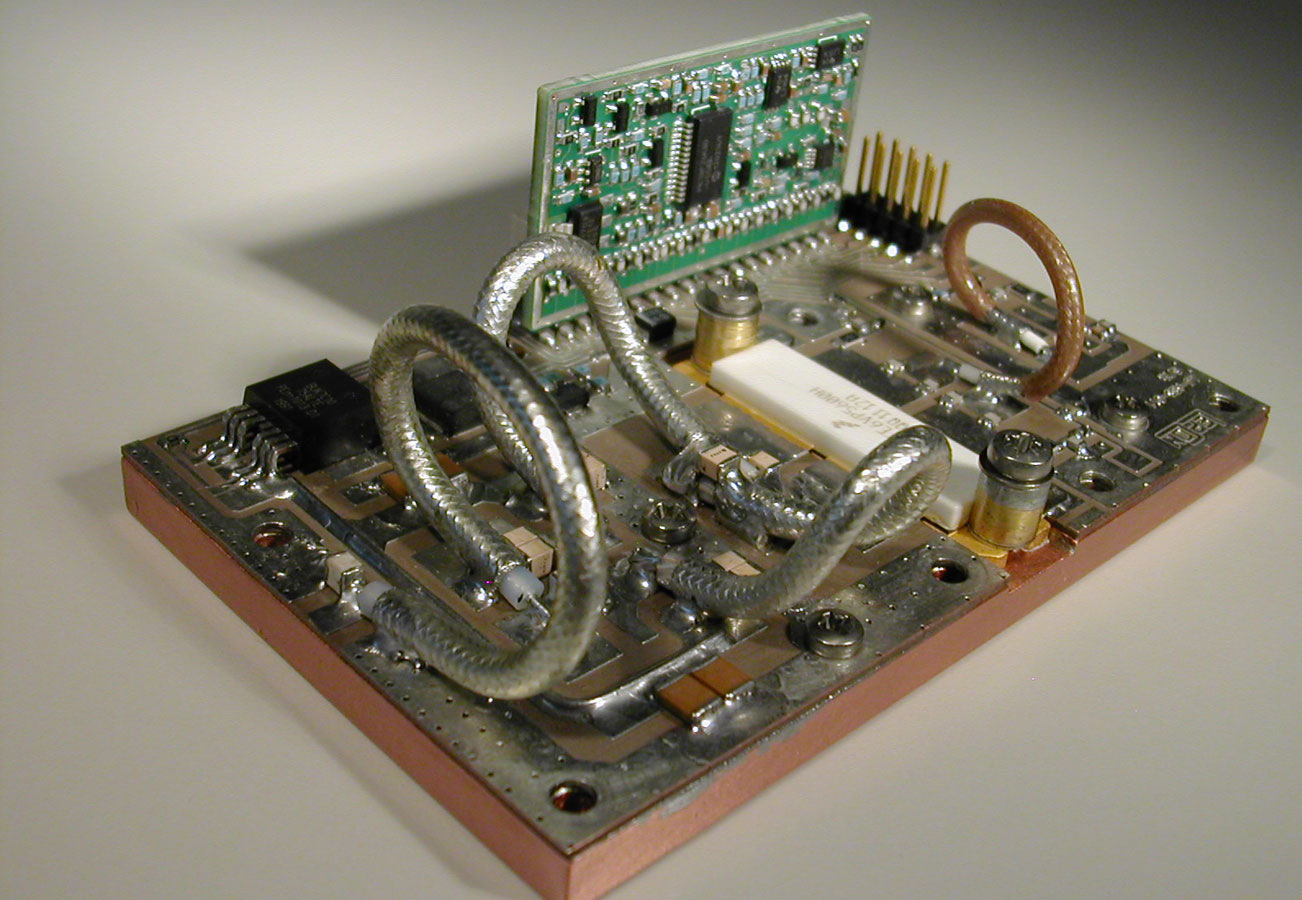

Product Picture

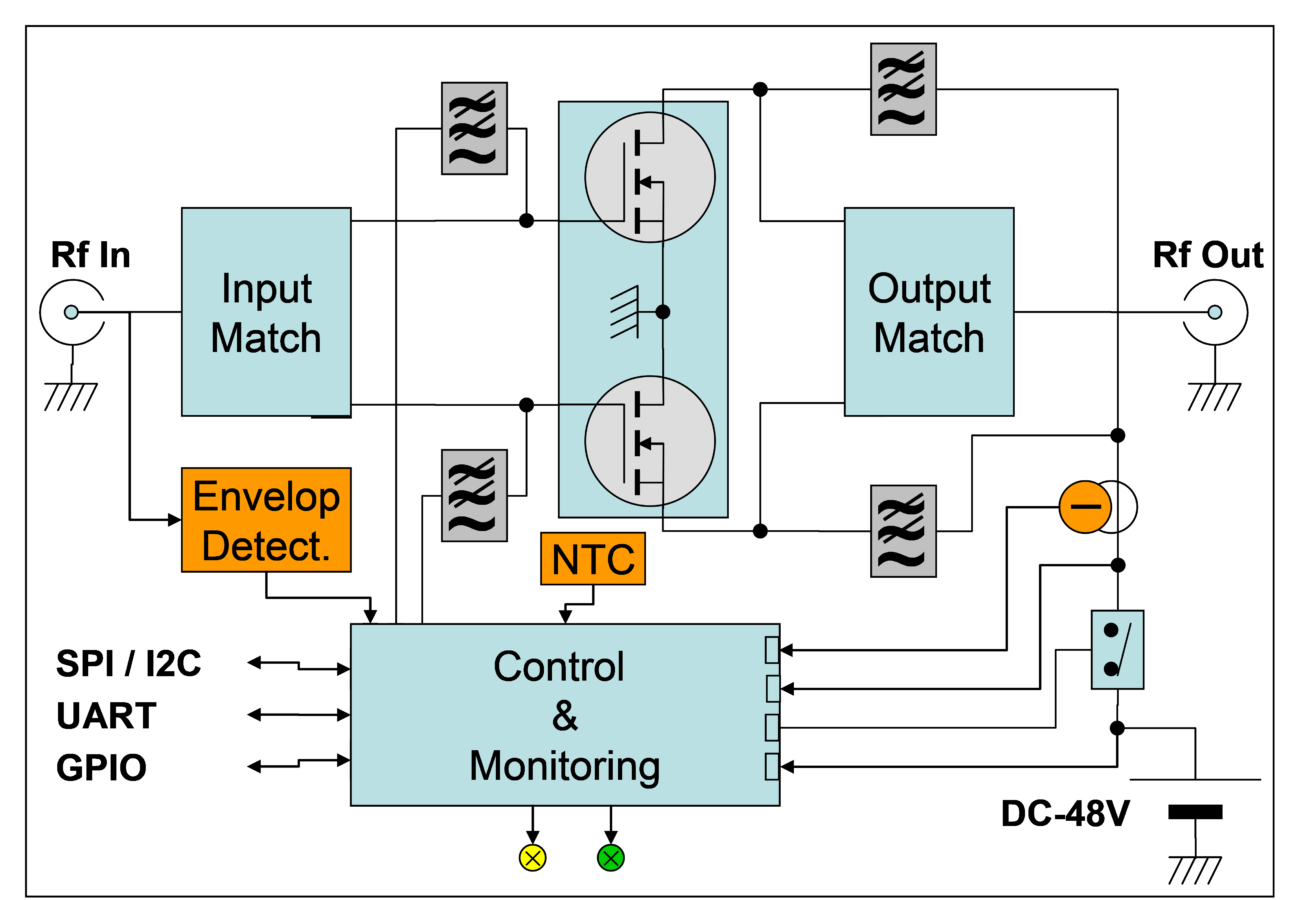

Amplifier Block Diagramm

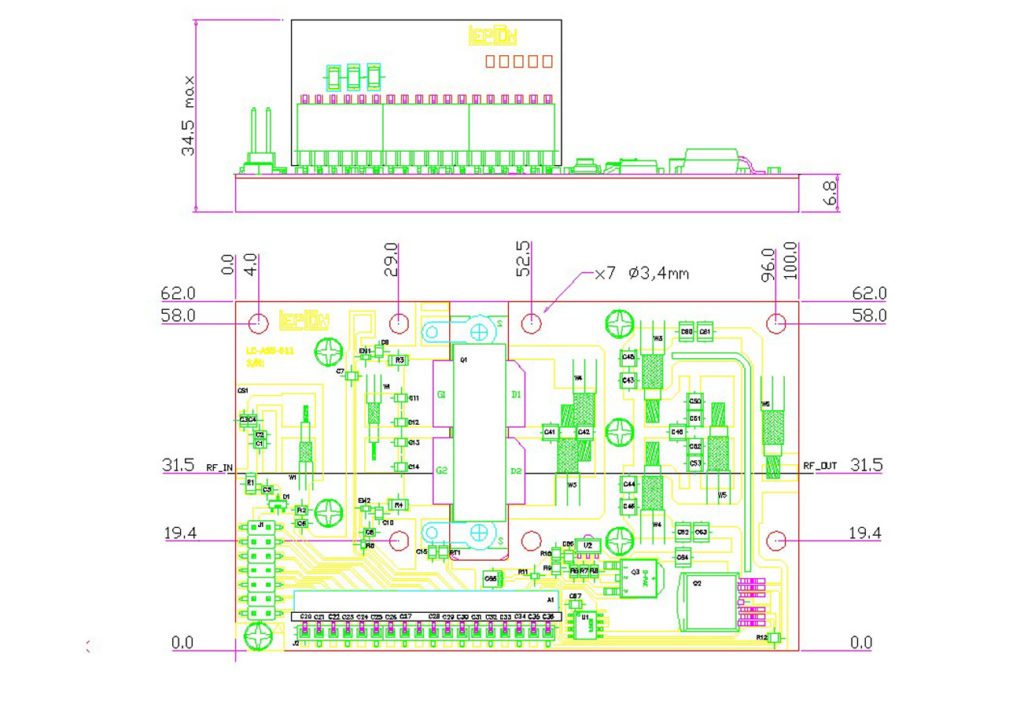

Mechanical Specification

500 W, 432MHz Intelligent Power Amplifier

Product Name

500 W, 432MHz Intelligent Power Amplifier P/N : LS-ASS-011

General Description

This linear power amplifier has been designed to cover the 432MHz HAM radio band offering OEMs a single, unsurpassed solution for high power amplifier designs. The amplifier is based on the latest generation of Freescale MRFE6VP5600HR6, high ruggedness N-Channel LDMOS device.
A 8bit/64MHz microcontroller, acquire all working voltages, currents, and temperatures acting bias control, protection and monitoring function. All the working parameter are available through serial port supporting various kind of protocols.

Technical Specification Summary



Frequency Range 428 ÷ 436MHz Working Class AB
Output Power (CW) @1dBcp 500W ± 0,3dB Supply Voltage 48V ± 2V
Power Gain @1dBcp >19dB Supply Current (max) <20 Amp.
Input Return Loss >15dB Temperature Range -20 to +45°C
Efficiency @1dBcp > 55% (60% typ) Output VSWR (no damage) < 3:1
OIP3 > 63 dBm

Key Features

• Microcontroller based intelligent bias for temperature compensation
• Power input detection for fast over-driver input protection
• Self test function at power start-up
• Over-temperature, Over-current, Over-voltage protection
• PTT input to set zero power consumption in RX mode
• Power-off function by inhibition control (only power section)
• Remote controlling and monitoring via multi-protocol UART/I2C/SPI serial interface
• Soft-start to minimize DC load transient

Product Picture

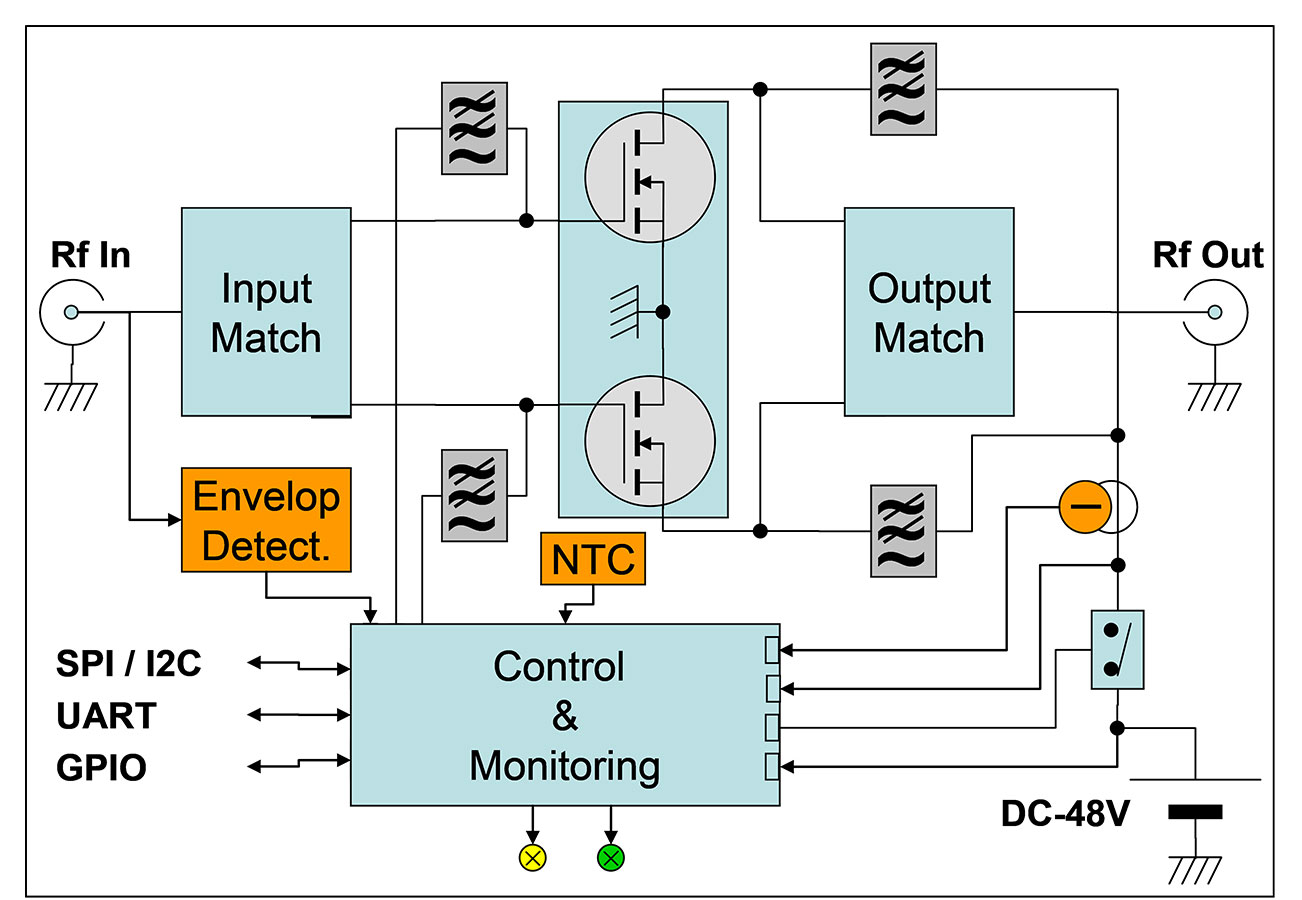

Amplifier Block Diagramm

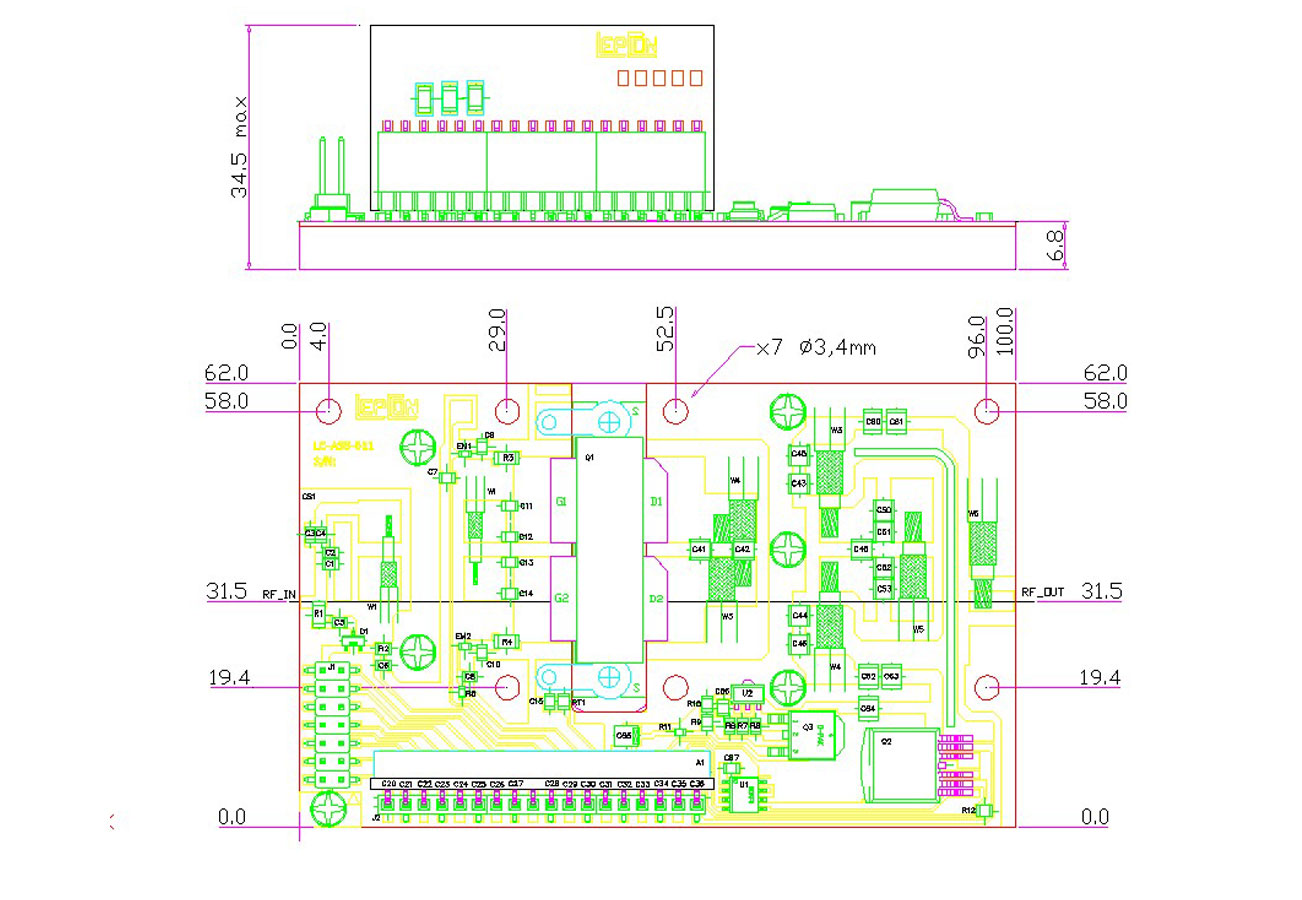

Mechanical Specification

250 W, 1290 MHz Intelligent Power Amplifier

Product Name

250 W, 1290 MHz Intelligent Power Amplifier P/N : LS-ASS-012

General Description

This linear power amplifier has been designed to cover the 1296MHz HAM radio band offering OEMs a single, unsurpassed solution for high power amplifier designs. The amplifier is based on the latest generation of NXP BLF6G13L-250P, N-Channel LDMOS device.
A 8bit/64MHz microcontroller, acquire all working voltages, currents, and temperatures acting bias control, protection and monitoring function. All the working parameter are available through serial port supporting various kind of protocols.

Technical Specification Summary



Frequency Range 1280 ÷ 1300MHz Working Class AB
Output Power (CW) @1dBcp 250W ± 0,3dB Supply Voltage 48V ± 2V
Power Gain @1dBcp >16dB Supply Current (max) <10 Amp.
Input Return Loss >12dB Temperature Range -20 to +45°C
Efficiency @1dBcp > 50% (60% typ) Output VSWR (no damage) < 3:1

Key Features

• Microcontroller based intelligent bias for temperature compensation
• Power input detection for fast over-driver input protection
• Self test function at power start-up
• Over-temperature, Over-current, Over-voltage protection
• PTT input to set zero power consumption in RX mode
• Power-off function by inhibition control (only power section)
• Remote controlling and monitoring via multi-protocol UART/I2C/SPI serial interface
• Soft-start to minimize DC load transient

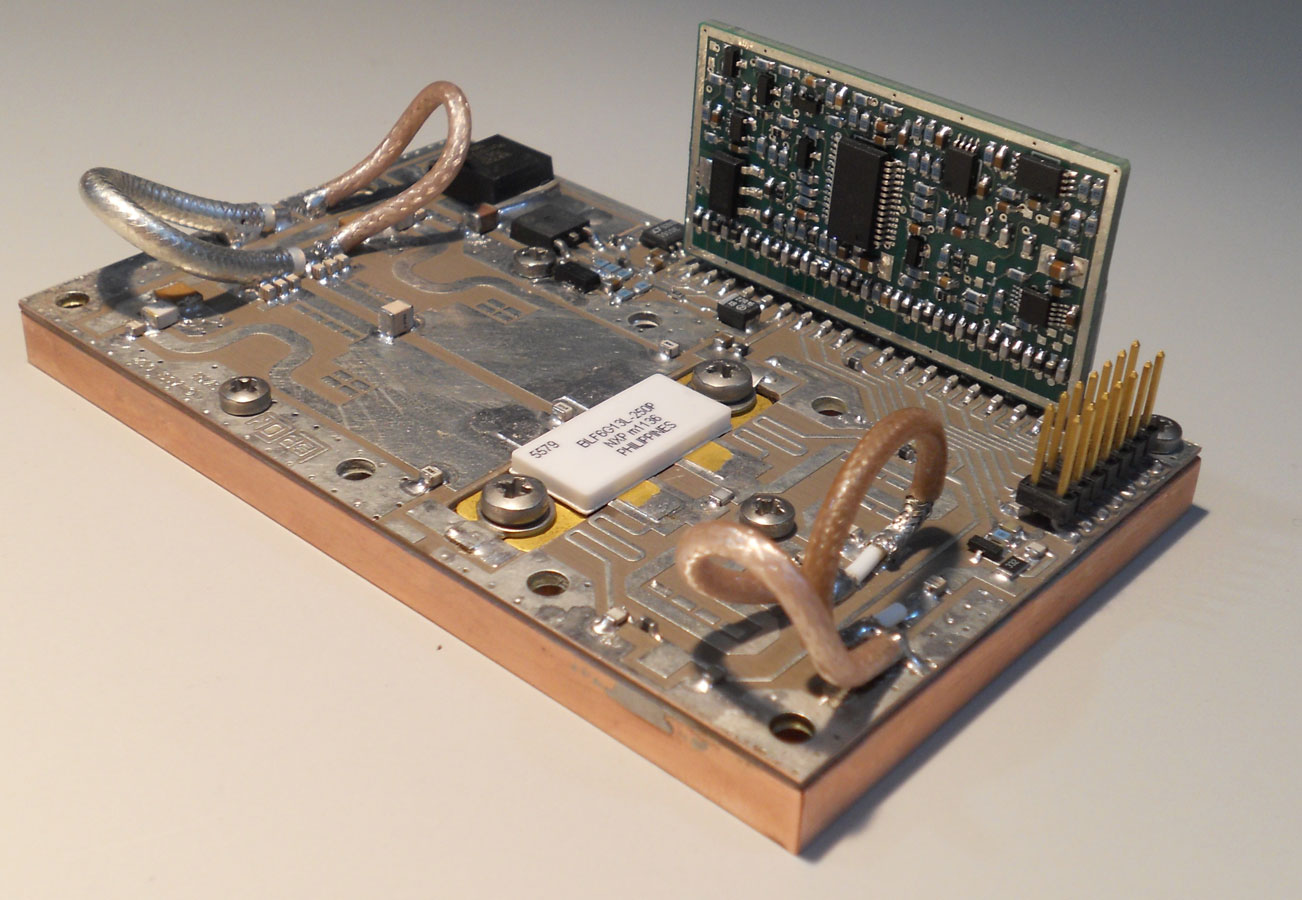

Product Picture

Amplifier Block Diagramm

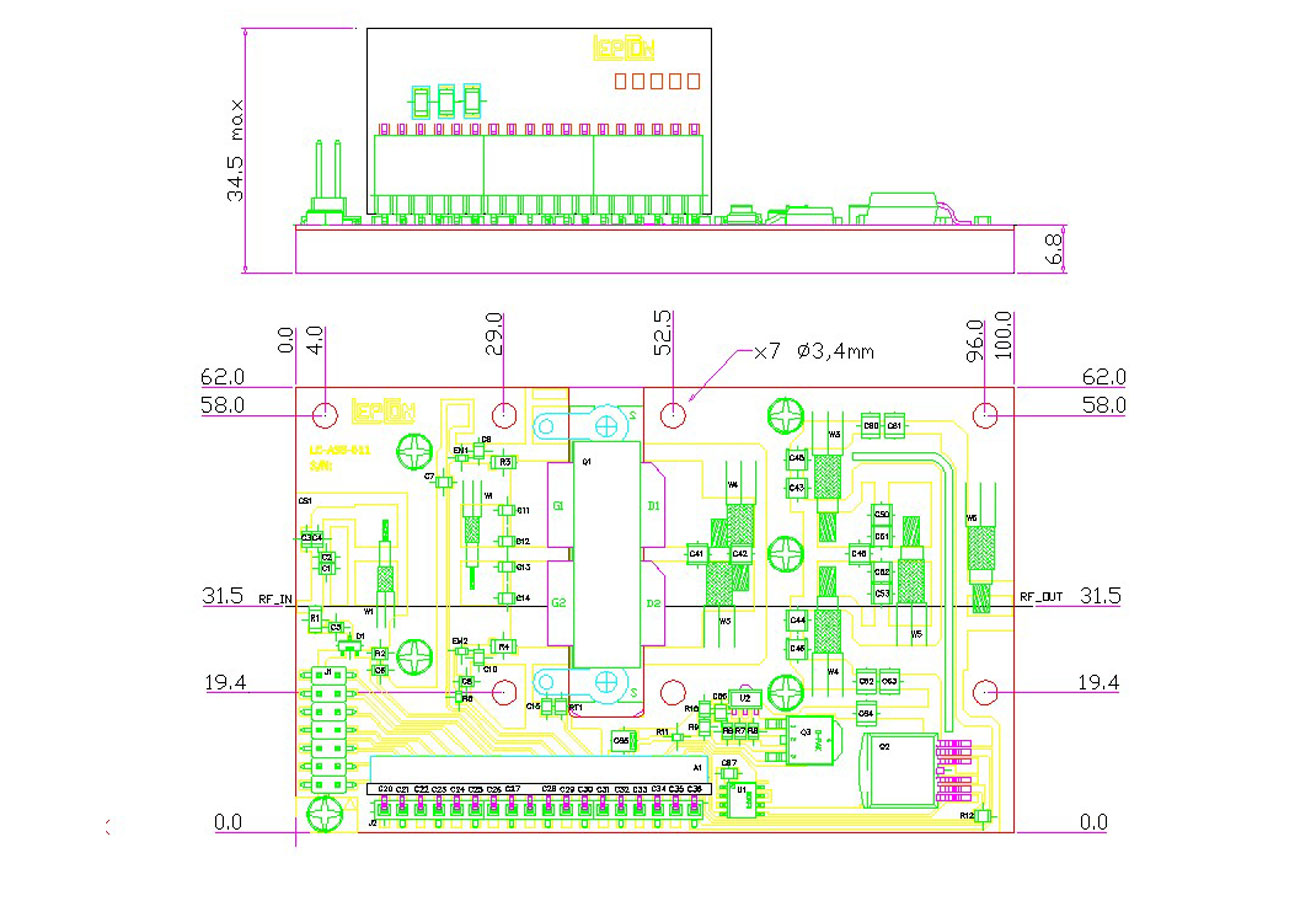

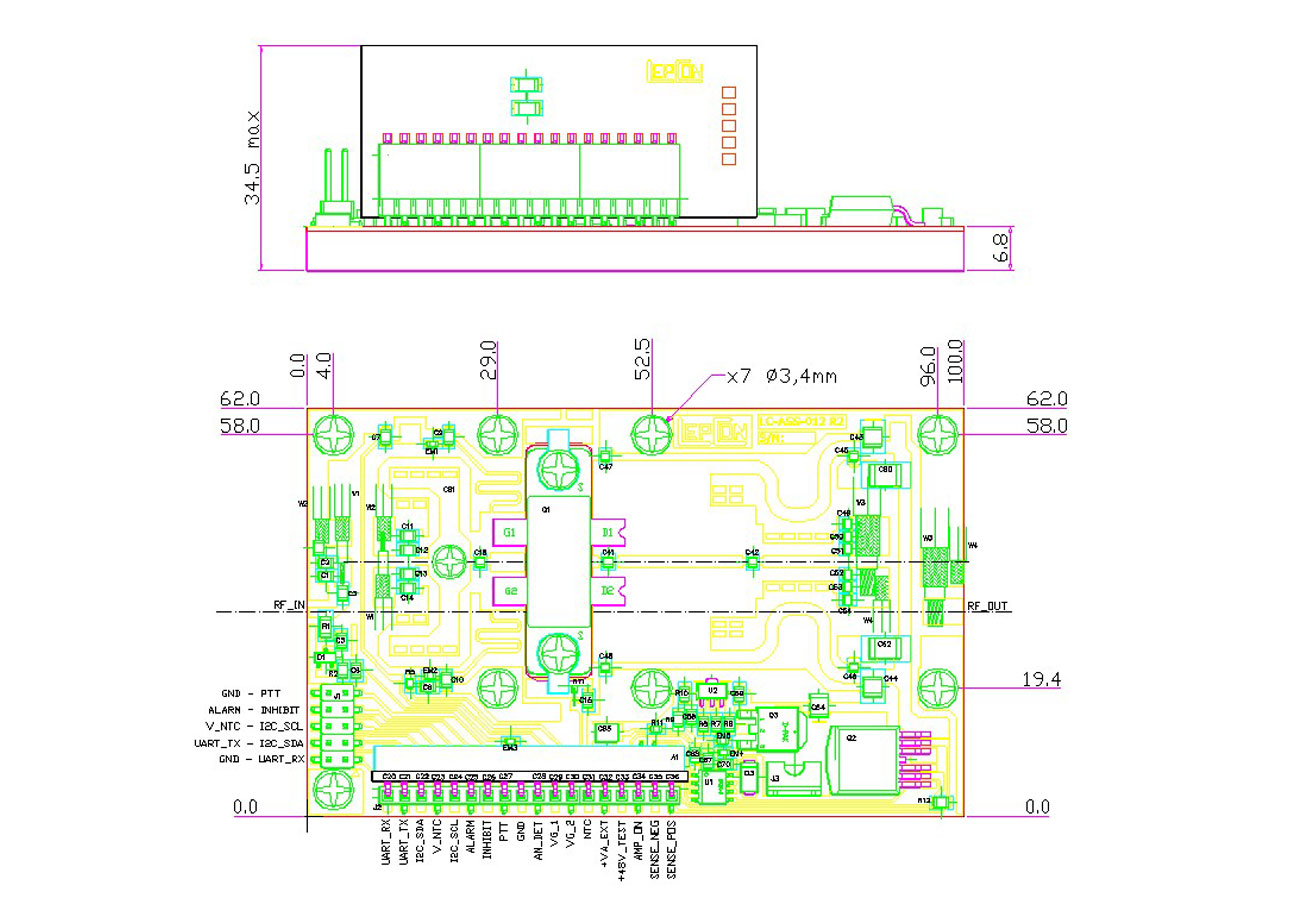

Mechanical Specification
