Double Directional Coupler

Dual Directional Coupler, 1,8 ÷ 50 MHz 1500W, 44dB

Product Name

Dual Directional Coupler, 1,8 ÷ 50 MHz 1500W, 44dB P/N : LC-ASS-022

General Description

This Directional Coupler has been designed to cover the 1,8 – 50 MHz band offering high performance in terms of power, directivity, loss and dimension.
The internal symmetrical design permit to have the best trade off between power, insertion loss and ports matching.

Technical Specification Summary



Frequency Range 1,8 ÷ 50MHz Coupling 44dB ± 0,5dB
Insertion Loss (Main) < 0,10dB Coupled Flatness ± 0,25dB
VSWR < 1,06 : 1 Directivity > 30dB (35 dB typ)
Power (Average) 1500W ( up to 10MHz)
3000W ( 10 ÷ 50MHz)
Main Line Connector SO-239A (UHF Female)
Coupled Line Connector SMA-Female

Key Features

• Robust construction for professional application
• SO-239A main line connectors for the best performance and reliability

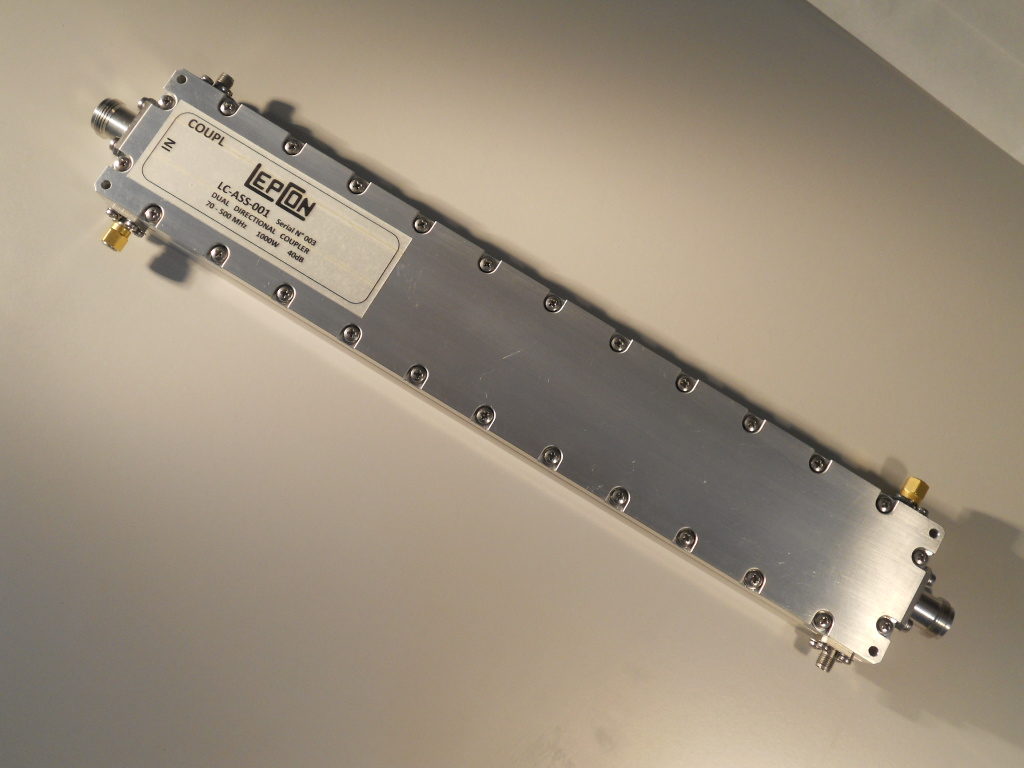

Product Picture

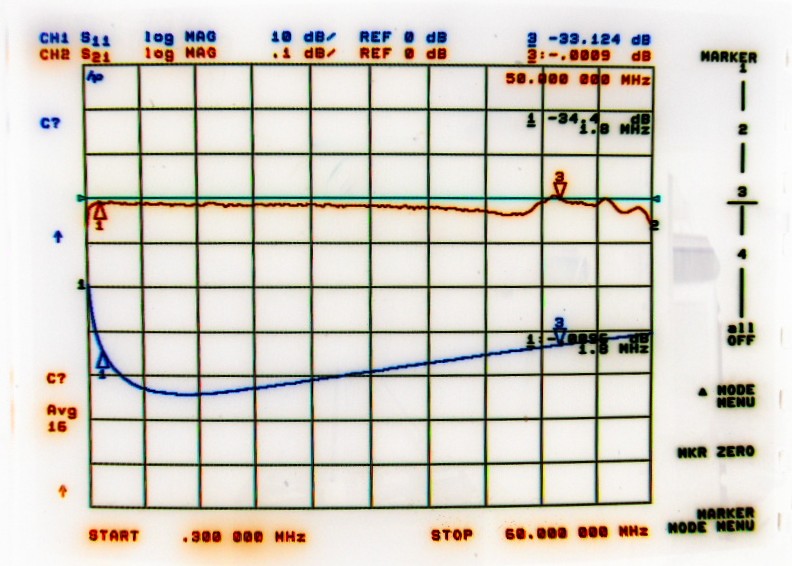

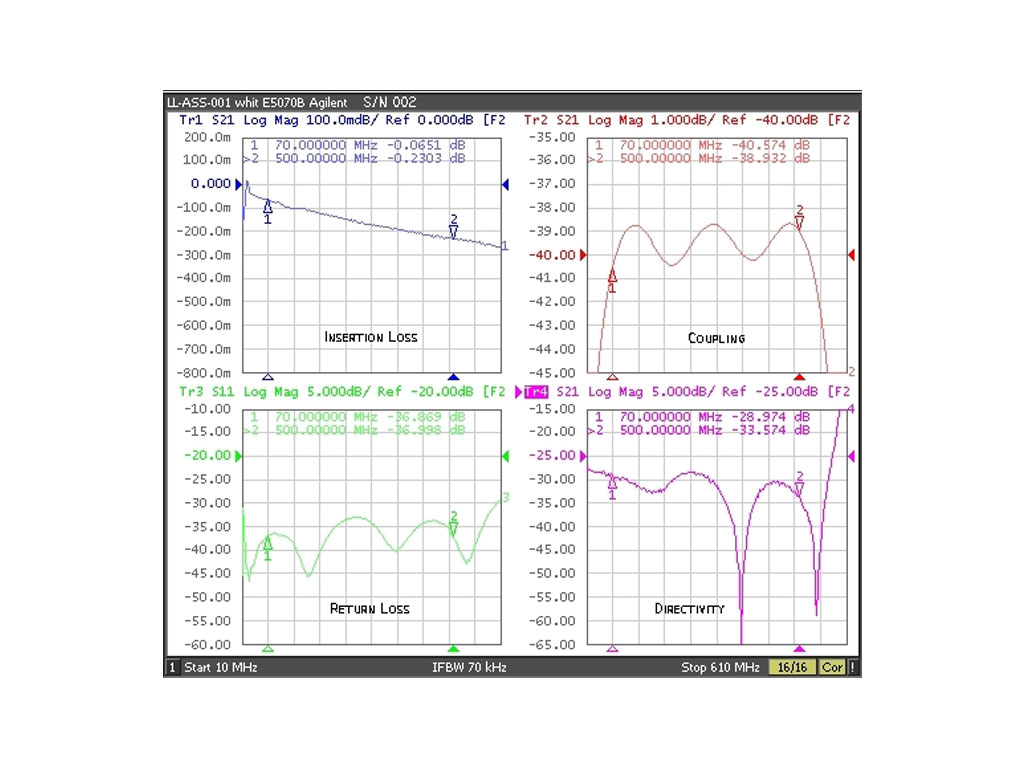

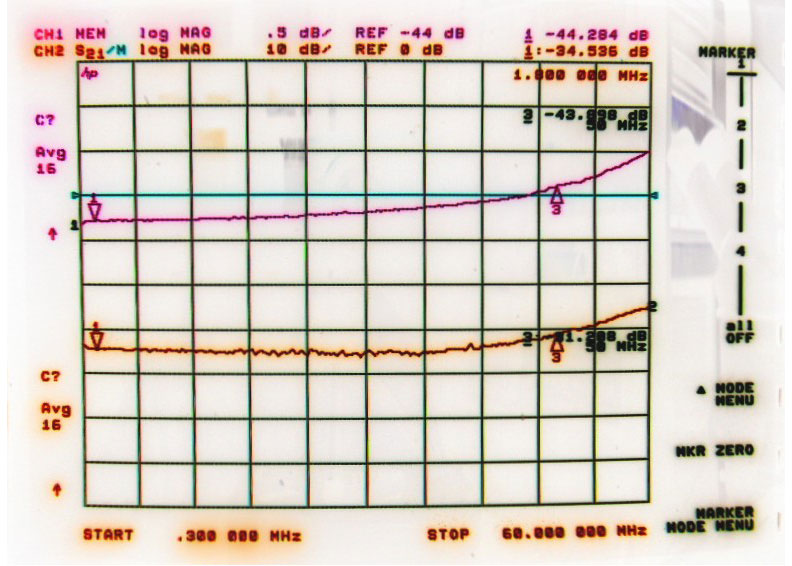

Typical Response Diagram

Mechanical Specification

Dual Directional Coupler, 70 – 500 MHz 1KW, 40dB

Product Name

Dual Directional Coupler, 70 – 500 MHz 1KW, 40dB P/N : LS-ASS-001

General Description

This Dual Directional Coupler has been designed to cover the 70 ÷ 500MHz band offering high performance in terms of power, directivity, loss and dimension.
The double structure with appropriate port termination permit to have both direct and reflected power outputs with only one device. The internal symmetrical design permit to have the best trade off between power, insertion loss and ports matching.
The component is realized with very loss tangent and dielectric constant stability across wide temperatures, microstrip TC600 (Arlon) substrate of 0.25” total thickness. Body is made with aluminium CNC high precision enclosure with conductive gasket for the optimal EMI performance.

Technical Specification Summary



Frequency Range 70 ÷ 500MHz Coupling 40dB ± 0,5dB
Insertion Loss (Main) < 0,25dB Coupled Flatness ± 1.1dB
VSWR < 1,1 : 1 Directivity > 25dB (30dB typ)
Power (Average) 1000W
Main Line Connector N-Female
Coupled Line Connector SMA-Female

Key Features

• Silver plated, one ounce electrodeposited copper on both sides substrates for minimized loss
• N-Female precision type Shuner connector for the best performance and reliability
• Loaded coupled port terminated with high return loss 1W SMA load

Product Picture

Typical Response Diagram

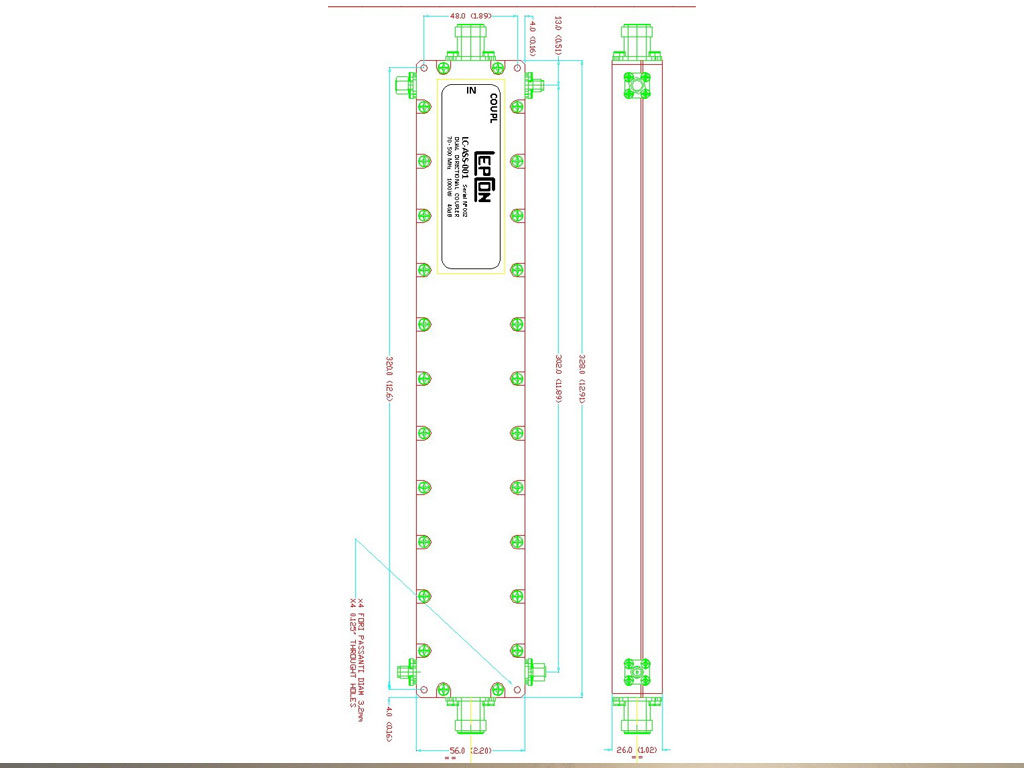

Mechanical Specification

Dual Directional Coupler, 400 ÷ 1500MHz 500W, 30dB

Product Name

Dual Directional Coupler, 400 ÷ 1500MHz 500W, 30dB P/N : LS-ASS-002

General Description

This Dual Directional Coupler has been designed to cover the 400 ÷ 1500MHz band offering high performance in terms of power, directivity, loss and dimension.
The double structure with appropriate port termination permit to have both direct and reflected power outputs with only one device. The internal symmetrical design permit to have the best trade off between power, insertion loss and ports matching.
The component is realized with very loss tangent and dielectric constant stability across wide temperatures, microstrip TC600 (Arlon) substrate of 0.25” total thickness. Body is made with aluminium CNC high precision enclosure with conductive gasket for the optimal EMI performance.

Technical Specification Summary



Frequency Range 400 ÷ 1500MHz Coupling 30dB ± 0,5dB
Insertion Loss (Main) < 0,25dB Coupled Flatness ± 1.1dB
VSWR < 1,2 : 1 Directivity > 25dB (28dB typ)
Power (Average) 500W
Main Line Connector N-Female
Coupled Line Connector SMA-Female

Key Features

• Silver plated, one ounce electrodeposited copper on both sides substrates for minimized loss
• N-Female precision type Shuner connector for the best performance and reliability
• Loaded coupled port terminated with high return loss 1W SMA load

Product Picture

Typical Response Diagram

Mechanical Specification

Dual Directional Coupler, 400 ÷ 4000MHz 250W, 30dB

Product Name

Dual Directional Coupler, 400 ÷ 4000MHz 250W, 30dB P/N : LS-ASS-018

General Description

This Dual Directional Coupler has been designed to cover the 400 ÷ 4000MHz band offering high performance in terms of power, directivity, loss and dimension.

The double structure with appropriate port termination permit to have both direct and reflected power outputs with only one device. The internal symmetrical design permit to have the best trade off between power, insertion loss and ports matching.

The component is realized with very loss tangent and dielectric constant stability across wide temperatures, microstrip TC600 (Arlon) substrate of 0.25” total thickness. Body is made with aluminium CNC high precision enclosure with conductive gasket for the optimal EMI performance

Technical Specification Summary



Frequency Range 400 ÷ 4000MHz Coupling 30dB ± 0,5dB
Insertion Loss (Main) < 0,40dB Coupled Flatness ± 0.5dB
VSWR < 1,3 : 1 Directivity > 20dB to 3000MHz
Power (Average) 250W > 15dB to 4000MHz
Main Line Connector N-Female
Coupled Line Connector SMA-Female

Key Features

• Silver plated, one ounce electrodeposited copper on both sides substrates for minimized loss
• N-Female precision type Shuner connector for the best performance and reliability
• Loaded coupled port terminated with high return loss 1W SMA load

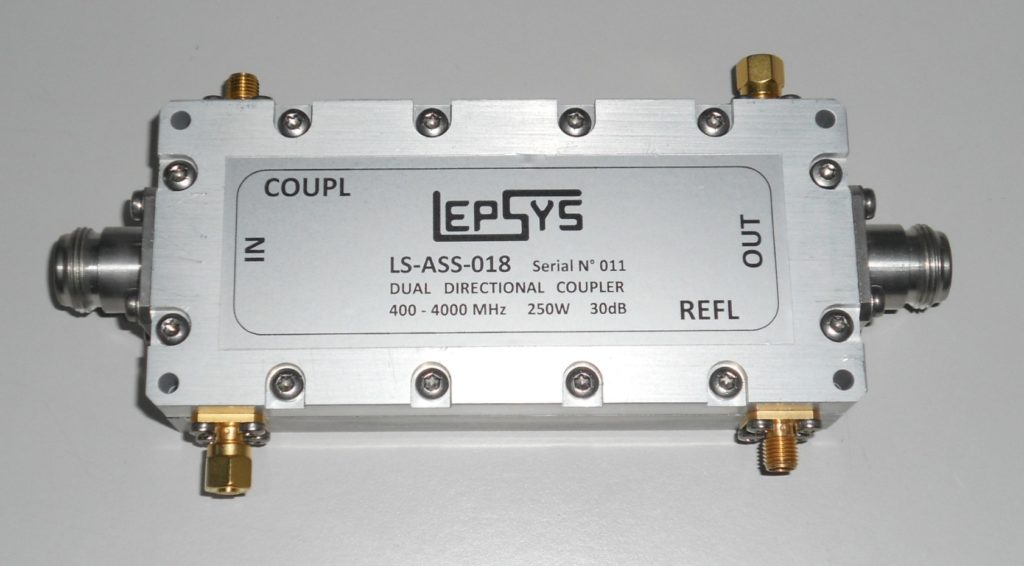

Product Picture

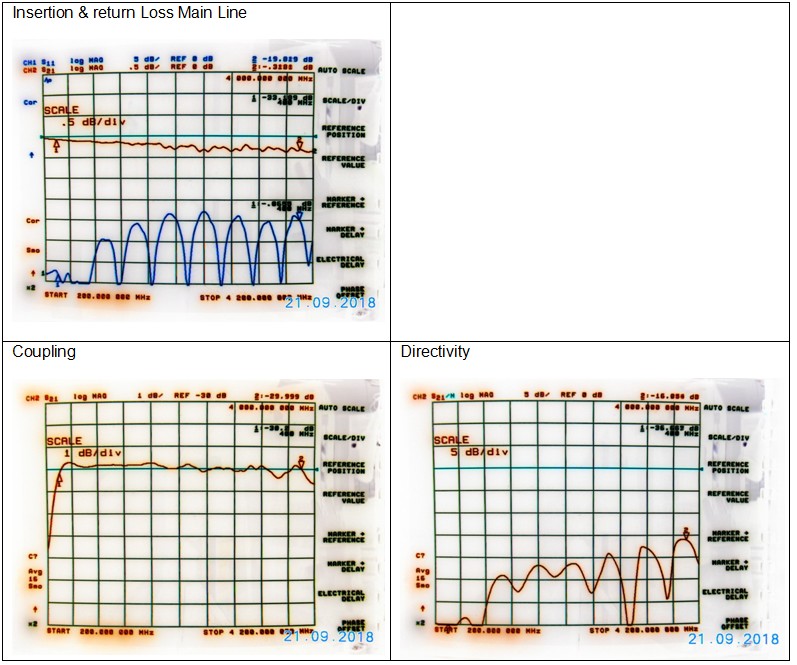

Typical Response Diagram

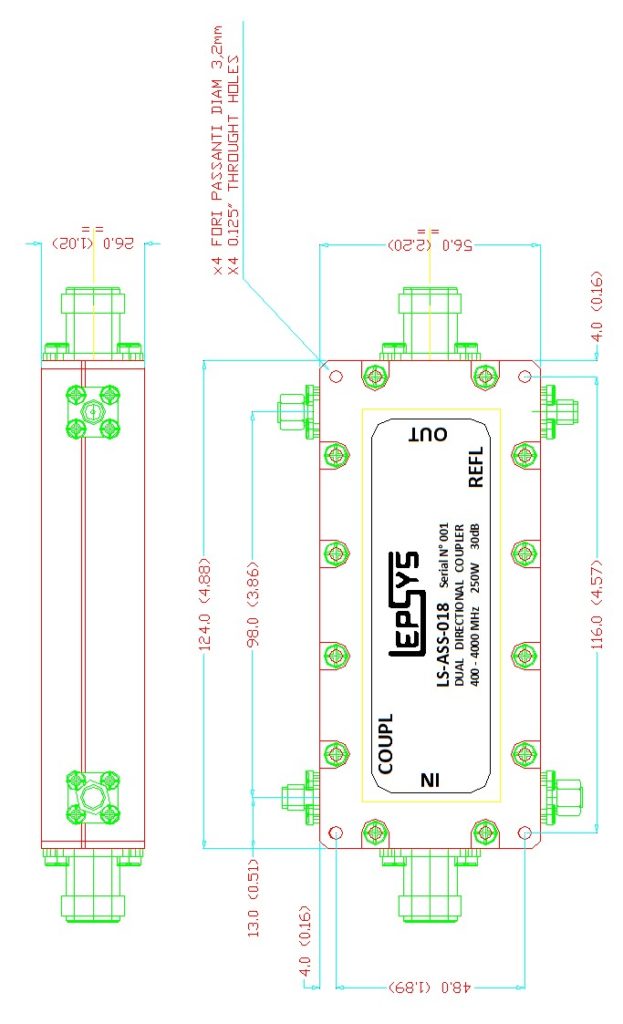

Mechanical Specification
